CanalNETWORK 2.5 (Mar 25)

Hello and Welcome Again,

We are thrilled and excited to bring to you yet another enhanced version of Version 2.5 of CanalNETWORK and DrainNETOWRK, including major updates.

In this release we provide updates for better user experience, and bug fixes found while testing previous releases. The DrainNET product resources are enhanced in a major way to accommodate key workflow requirements in design process.

Big Thankyou, EEC for your trust, contributions and support.

Happy Designing!

Team Quanomic.

What's New

CanalNET Updates

Back to ToC

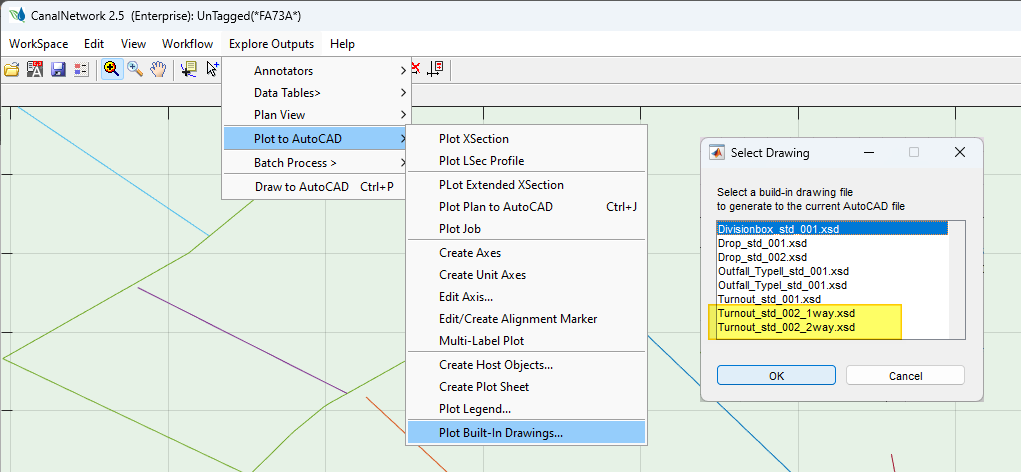

1. Incorporated new turnout design drawings, as part of the built in menu of CAD resources. The previous update included integration of dimension tables, and boq in to design products.

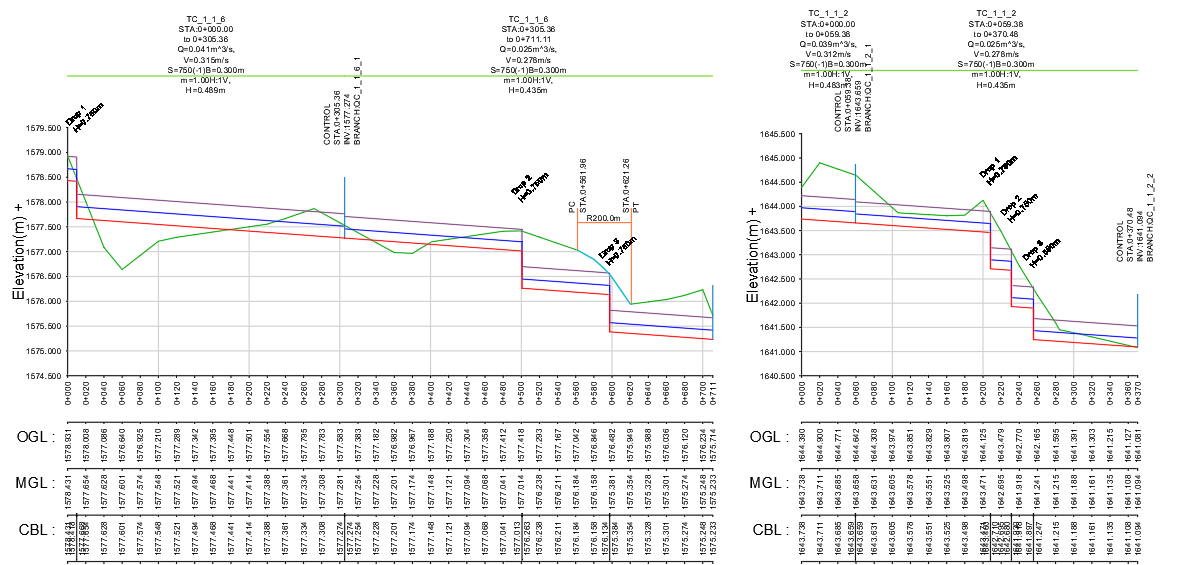

2. Lsec Drawing production is now improved to maintain consistent scaling for schedule plots, regardless of the length of the canal. Note: A standard production length of 1000m is assumed.




   Previously, any reach less than a 1000m is generated with odd text height, spacing, and scaling, creating too much modification work to drafts persons.

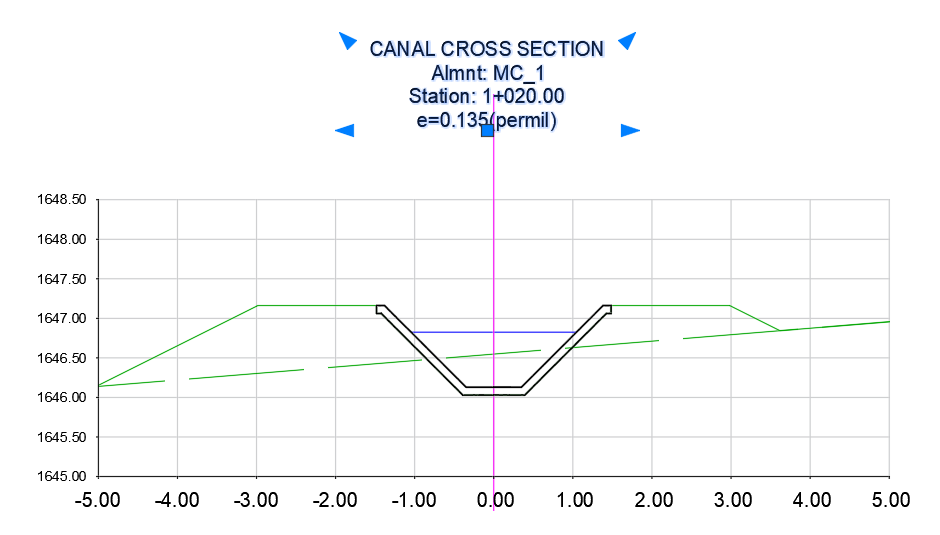

3. Batch cross-section generation is succesully improved to correct the issue of duplicate plot titles exported to AutocAD.




   Additionally, we recomend the use of OVERKILL command in AutoCAD, to swiftly handle duplicate objects in a drawing.

END.
